How to Flash Stock Firmware using Broadcom MultiDownloader Tool

Here on this page, you will find instructions on how to install stock ROM on Android smartphone or tablet using the Broadcom MultiDownloader Tool.

Flash Stock Firmware Broadcom MultiDownloader Tool - How to Flash Stock Firmware using Broadcom MultiDownloader Tool

Before you proceed with the instructions on how to flash stock firmware using Broadcom MultiDownloader Tool, it is recommended to follow the preparation steps listed below.

Preparation:

  • It is recommended to take a backup of your important data to a safe place.
  • Make sure your Android device is sufficiently charged before you proceed with the flashing process. It is recommended to charge your device to at least 50% – 60% percent to perform the flashing process.

How to Flash Stock Firmware using Broadcom MultiDownloader Tool

Step 1: Download and install the required Android USB Driver on your computer. If the drivers are already installed, skip this step.

usb - How to Flash Stock Firmware using Broadcom MultiDownloader Tool

Step 2: Download and extract Android Stock ROM Firmware for your phone or tablet from here to your computer.

Step 3: Download and extract the Broadcom MultiDownloader Tool on your computer.

Broadcom Multi Downloader Files - How to Flash Stock Firmware using Broadcom MultiDownloader Tool

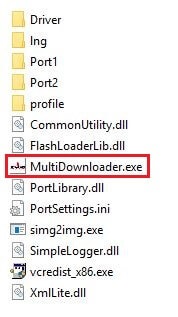

Step 4: Open the Broadcom MultiDownloader Tool folder and run MultiDownloader.exe on your computer.

Run Broadcom Multi Downloader - How to Flash Stock Firmware using Broadcom MultiDownloader Tool

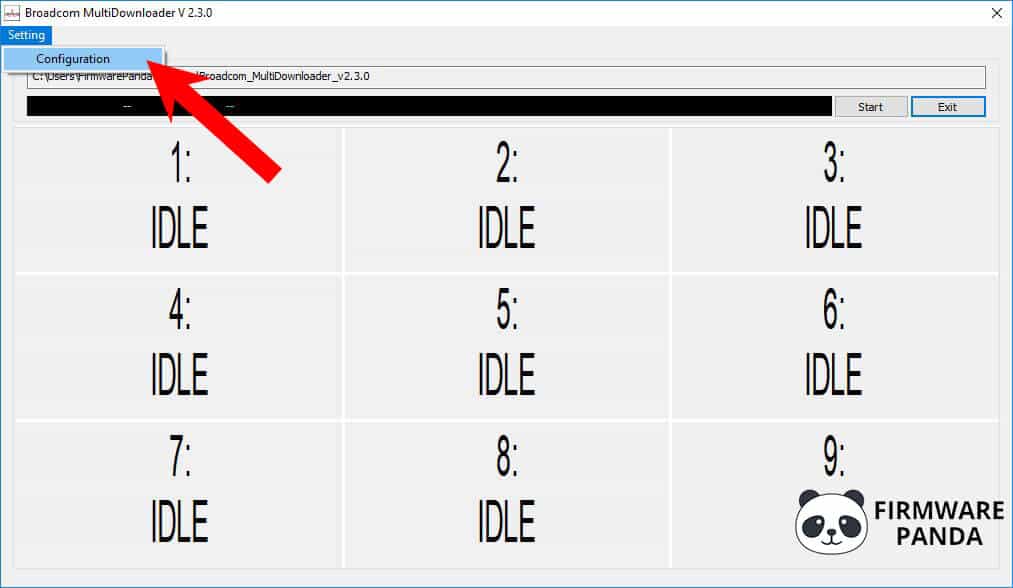

Step 5: Once the Broadcom Multi Downloader Tool launches, click on “Settings” and then on “Configuration“.

Broadcom Multi Downloader Settings - How to Flash Stock Firmware using Broadcom MultiDownloader Tool

Step 6: Now, a configuration window should open. Click on the […] button and locate the firmware folder which you have extracted in Step #2.

Broadcom Multi Downloader Select Image Path - How to Flash Stock Firmware using Broadcom MultiDownloader Tool

Broadcom Multi Downloader Select Firmware Folder - How to Flash Stock Firmware using Broadcom MultiDownloader Tool

Step 7: Once you have located and added the firmware folder in the configuration window, click on “Apply” to continue.

Broadcom Multi Downloader Apply Settings - How to Flash Stock Firmware using Broadcom MultiDownloader Tool

Step 8: Power off your phone and press and hold the Volume Up and Volume Down buttons together and connect your phone to computer while still holding the Volume buttons.

Connect Mobile to Computer - How to Flash Stock Firmware using Broadcom MultiDownloader Tool

Step 9: Once the phone is connected, the Broadcom MultiDownloader Tool will detect the device and show the message “Detected”.

Broadcom Multi Downloader Device Added - How to Flash Stock Firmware using Broadcom MultiDownloader Tool

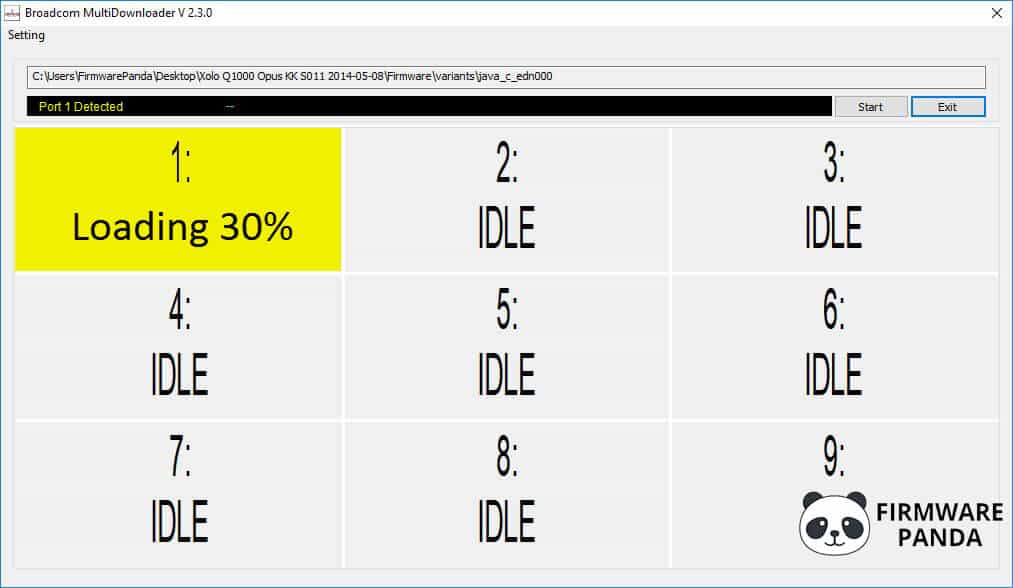

Step 10: Now click on the “Start” button to begin the flashing process.

Broadcom Multi Downloader Start Firmware Flashing - How to Flash Stock Firmware using Broadcom MultiDownloader Tool

Broadcom Multi Downloader Flashing Firmware - How to Flash Stock Firmware using Broadcom MultiDownloader Tool

Step 11: Once the flashing process is completed, you will see “Green OK” status in Broadcom MultiDownloader.

Broadcom Multi Downloader Firmware Flash Completed - How to Flash Stock Firmware using Broadcom MultiDownloader Tool

Step 12: Now close the Broadcom MultiDownloader Tool and disconnect the phone from the computer and reboot it.

Congratulations! Now you have successfully flashed Stock Firmware using Broadcom MultiDownloader Tool on your Android Smartphone or tablet.
